DJI RS 5 Gimbal Combo Kit with AI Tracking Module & Briefcase Handle

#2864J2250  PC #DJRS5C
In Stock
Key Features
  • Lightweight 3.2 lb Body, 6.6 lb Payload

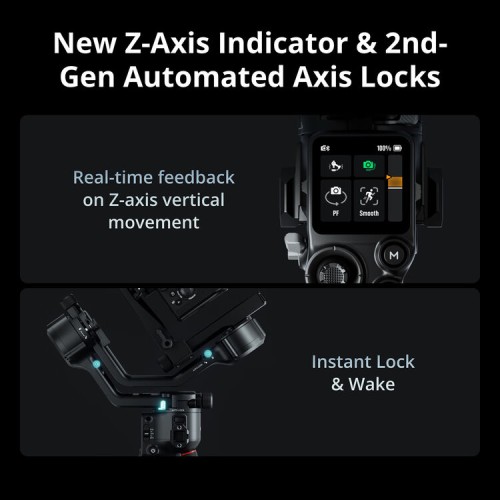

  • Z-Axis Vertical Indicator
  • Active Tracking Module, Briefcase Handle
  • One-Hour Full Charge with 65W PD Charger
  • 2nd Gen Automated Axis Locks
  • Separate Electronic Control Handle
  • OLED Touchscreen with Auto-Lock
  • 2nd Gen Native Vertical Shooting
  • Joystick or Bluetooth Mode Switching

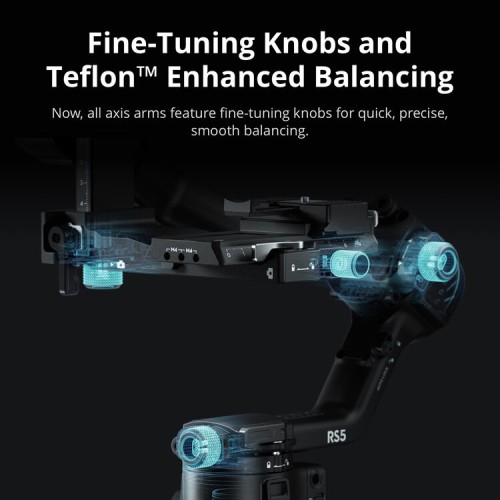

  • Teflon-Coated Axes, Enhanced Balancing
MMK 2,890,000.00
Color
Style

Specifications

DJI RS 5 Specs

Information Gimbal Design
Single Handgrip
Load Capacity
6.6 lb / 3 kg
Number of Axes
Three: Pitch (Tilt) / Roll / Yaw (Pan)
Camera Control
On Compatible Models (See Full Compatibility List)
Mobile App Compatible
Yes: Android & iOS
Display Type
Fixed Touchscreen OLED
Weight
2.630 lb / 1.193 kg
Transmission System
Bluetooth 5.1
2.4 GHz

Gimbal

Information Load Capacity
6.6 lb / 3 kg
Number of Axes
Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range
Mechanical Range
Yaw (Pan): 360°
Roll: 335° (-95 to 240°)
Pitch (Tilt): 326° (-112 to 214°)
Follow Speed
Pan/Tilt/Roll: 360°/s
Counterweight
Available, Not Included
Joystick Controller
No

Compatibility

Information Camera Control
On Compatible Models (See Full Compatibility List)
Camera Compatibility
Universal
Camera Mounting Screw
1x 1/4"-20 Male

Connectivity

Information Inputs/Outputs
1x USB-C (Power)
Wireless
2.4 GHz Radio/RF / Bluetooth 5.1
Mobile App Compatible
Yes: Android & iOS
App Name: Ronin App

Battery

Information Battery Type
Built-In
Battery Runtime
14 Hours
Battery Charging Time
1 Hours

Power

Information Operating Voltage
7.2 VDC

Packaging Info

Information Package Weight
4.59 lb
Box Dimensions (LxWxH)
11.7 x 10.2 x 3.7"

General

Information Display Type
Fixed Touchscreen OLED
Operating Conditions
-4 to 113°F / -20 to 45°C
Materials
Aluminum Alloy
Accessory Mounting
1 x 1/4"-20 Female
2 x NATO Rail
Dimensions
16.5 x 8.8 x 7.6" / 418.8 x 223.2 x 192.2 mm
10.2 x 9.7 x 4.6" / 258.7 x 247.4 x 115.7 mm (Folded)
Weight
2.630 lb / 1.193 kg

Transmitter

Information Transmitter I/O
2 x NATO
2 x USB-C
Transmission System
Bluetooth 5.1
2.4 GHz
